Link G4X Civic - HC96X

• Easy to install. Affordable. Reliable.
  G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
  This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.


  Designed for the 1996-1998 Honda B16 and B18 engine. All models that use the Honda “OBD2A” ECU.

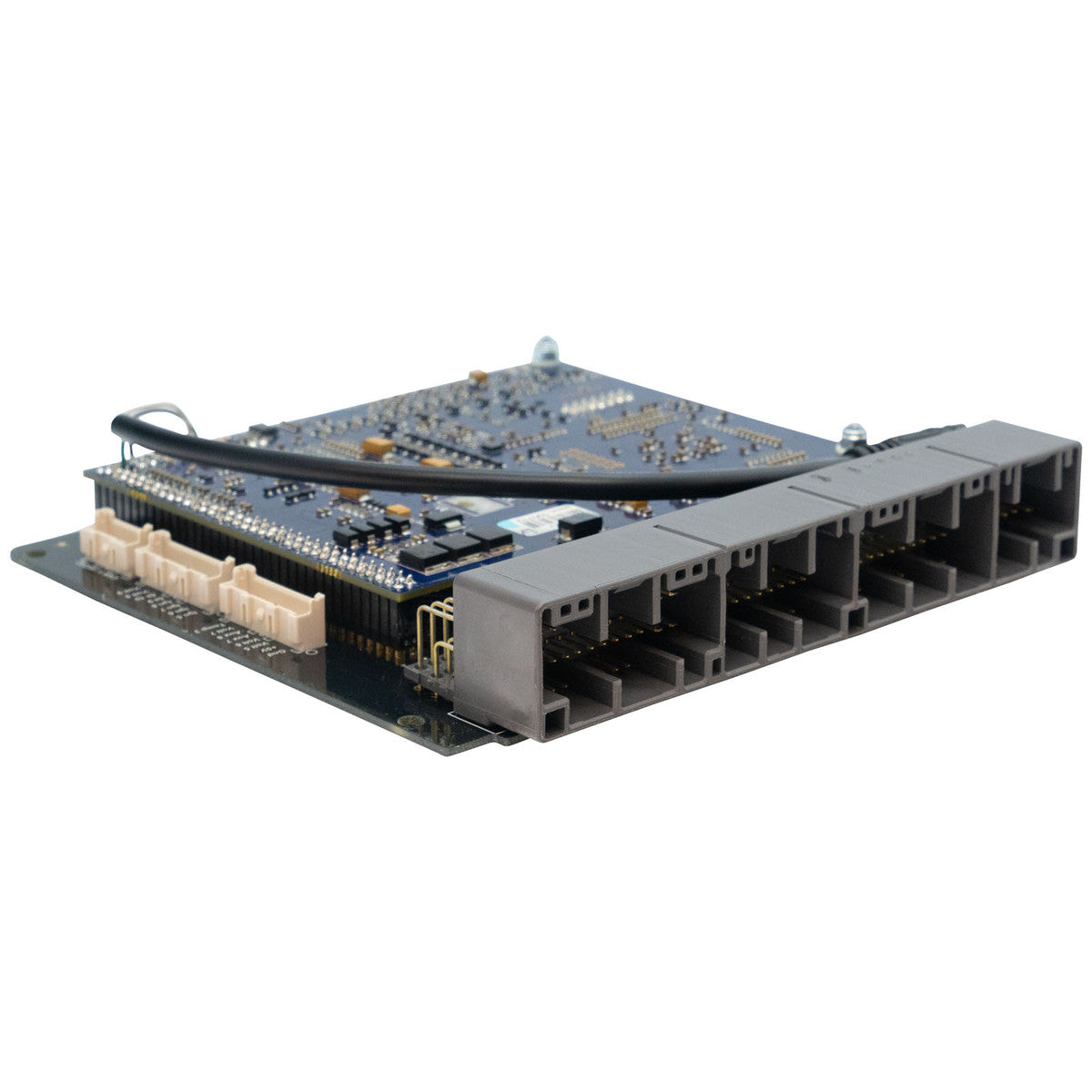

  • Please check your connector matches the header in the listed photo before purchasing.
  • This ECU works for manual transmissions only.
  • Onboard MAP sensor not included
  • Most factory features are supported.
  • Check the features tab for I/O expansion options.
  • This ECU will need a modification before E-Throttle is usable.


  Suitable applications:

  ACURA: 98-99 CL & 00-01

  Integra LS/GS/GS-R/Type-R

  HONDA: 98-02 Accord DX/LX/EX

  99-00 Civic DX/LX/EX/Si 1,2 or 3 Channel Link Igniter
• Narrowband Oxygen Sensor
• Wideband O2 Controller & Sensor
• Injector Ballast Resistor Packs

- 1 x 1R (6 x <6R injectors)- 2 x 1R (12 x <6R injectors)- 1 x 4R7 (1 x <6R injectors)- 2 x 4R7 (2 x <6R injectors)- 1 x 2R2 (1 x <3R injectors)- 2 x 2R2 (2 x <3R injectors)- 4 x 4R7 (4 x <6R injectors)- 6 x 4R7 (6 x <6R injectors)

Manufacturing Standard

• ISO 13485
